磁柵邏輯控制器/網絡版MTS-100

Magnetic grid logic controller/network version MTS-100

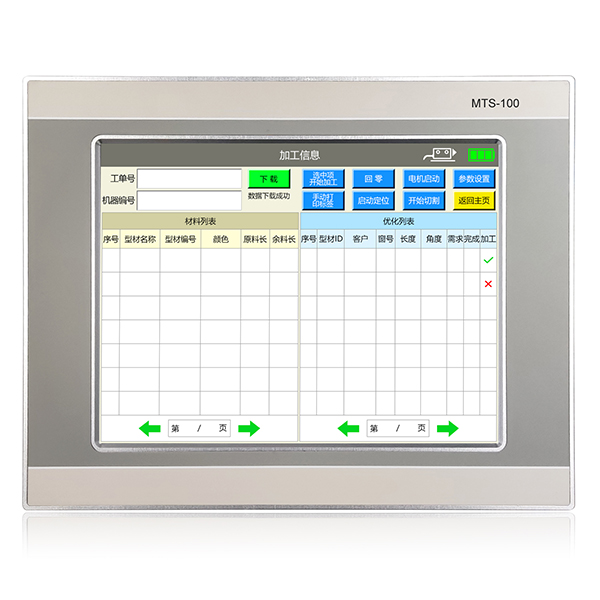

9.7寸高清觸摸彩色顯示屏,全自動控制一體機,控制所有邏輯動作
9.7-inch high-definition touch color display, automatic control all-in-one machine, control all logic actions
內置2.4G WIFI功能,RJ45高速網絡接口
Built-in 2.4G WIFI function,RJ45 high-speed network interface
多軸多種控制方式:可控制步進,伺服,普通電機+高精度磁柵大閉環定位反饋系統
Multi-axis and multiple control methods: controllable stepping, servo, ordinary motor + high-precision magnetic grid large closed-loop positioning feedback system
內置充電鋰電池,支持掉電保存測量位置,無需更換電池
Built-in rechargeable lithium battery, support to save the measurement position when power-off, no need to replace the battery
支持無線數據傳輸功能
Support wireless data transmission function
支持掃碼定位加工,自動生成條碼,自動打印功能
Support scanning code positioning processing, automatic barcode generation, automatic printing function
機械誤差分段補償設置和擺角補償設置.可減少設備機械誤差
Mechanical error segmented compensation settings and swing angle compensation settings can reduce equipment mechanical errors
支持485,232,通訊接口,USB升級軟件
Support 485,232, communication interface, USB upgrade software
自動一鍵測量料高/手動修改料高/無線傳輸料高
Automatic one-key measurement of material height/manual modification of material height/wireless transmission of material height
全鋁合金外殼結構設計,抗壓性強,適用于自動化設備在惡劣環境適用
All aluminum alloy shell structure design, strong pressure resistance, suitable for automation equipment in harsh environments
產品應用領域說明
  • 特性
    features
  • 技術參數
    Technical parameters
  • 備注
    Notes
  • 系統精度
    System accuracy
  • (0.03+0.01L)m
  • L單位為米
    Lunit is:M
  • 重復精度
    Repeatability accuracy
  • MAX±001mm

  • 測控范圍
    Measurement and control range
  • -9999.99~9999.99mm
  • 與分辨率設定有關
    Related to resolution setting
  • 顯示分辨率
    Display resolution
  • 0.01,0.05,0.1,1mm
  • 可設定
    Can be set
  • 輸出形式
    Output form
  • 晶體管輸出,脈沖輸出
    Transistor Output, Pulse Output

  • 后備電源
    Backup power
  • 1節1.5V LR14
    1 section 1.5V LR 14
  • 壽命約0.5年
    Life expectancy is about 0.5 years
  • 整機功耗
    whole machine power consumption
  • 小于8W
  • 無外接輸入輸出
    No external input and output
  • 消耗電流
    Consumption current
  • Max.400uA

  • 測控速度
    Measurement and control speed
  • Max. 4m/s

  • 適用磁尺
    Applicable magnetic ruler
  • 5mm+5mm

  • 讀頭與磁帶間距
    Spacing between reader and tape
  • 0.5mm----2.0mm

  • 外殼材料
    Housing material
  • 銀色鋁合金
    Silver aluminum alloy

  • 傳感器線長度
    Sensor line length
  • 1m--15m
  • 可定制
    Customizable
  • 傳感器防護等級
    Sensor protection level
  • P67

  • 工作溫度
    Operating temperature
  • -10°C......+60°C

  • 存儲溫度
    Storage temperature
  • -30°C.....+80°C

安裝和調試要點,詳見產品說明書

Installation and commissioning, see product specifications
