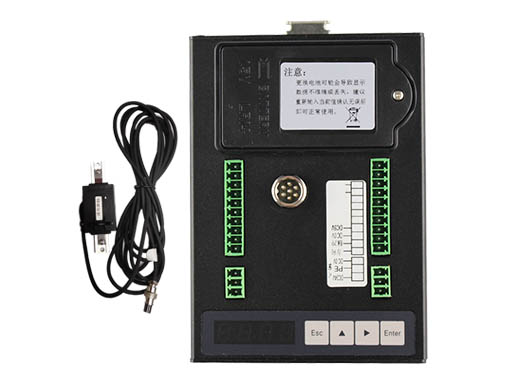

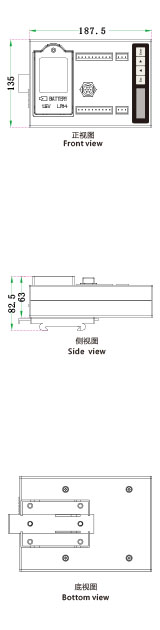

磁柵控制模塊MS51

MAGNETIC GRID CONTROL MODULE

準絕對式測量,電池+外部電源供電,磁性位移傳感器+功率繼電器輸出的一體化設計

Quasi absolute measurement, battery+ external power supply, integrated design of magnetic displacement sensor power relay output

公制/英制可切換

Metric/inch switch

手動/單動運行模式

Manual/ single action mode

自適應運動慣量

Adaptive motion inertia

自修正絲杠間隙誤差

Self correcting screw clearance error

高可靠性繼電器輸出(包括換向高低速定位完成等輸出,晶體管輸出控制伺服/步進

High reliability relay output (including commutation, high and low speed, positioning complete output), transistor output control servo/step

使用磁性位移傳感器

Magnetic displacement sensor

DC24V+后備電池供電

DC24V+ backup battery power supply

電池供電,即使外部電源斷開后設備有位移,MS51也能實時跟蹤準確測量

Battery power supply, even if the external power supply is disconnected the device has a displacement, MS51 can also track real-time accurate measurement

Rs485通訊接口

Rs485 communication interface

帶多段補償功能

With multiple compensation function

特性
features
技術參數
Technical parameters
備注
Notes

系統精度
System accuracy
±(0.03+0.01*L)mm
L單位為:米
Unit: m

重復精度
Repeat accuracy
0.01mm

測控范圍
Range of measurement and control
-19999.9mm~99999.9mm
與分辨率設定有關
Associated with the DPI setting

顯示分辨率
Display resolution
0.01mm/0.05mm/0.1mm
可設定
Can be set to

電源電壓
Power supply voltage
DC24V

后備電池
Backup battery
1節(jié)2號 1.5v(LR14)
1 2nd 1.5v(LR14)
壽命約2.5年
Life is about 2.5 years

整機功耗
Machine power consumption
小于4W

測控速度
Control speed
MAX2.5m/S

適用磁尺
Applied magnetic ruler
5mm+5mm

讀頭與磁帶間距
Read head and the tape space
0.5mm------2.0mm

輸出形式
Output form
繼電器常開
Relay normally open
可定制脈沖+方向輸出
Customizable pulse + direction output

輸出觸點功率
Contact power output
AC220V/5A DC24V/10A

傳感器線長度
Sensor cable length
1m------15m
可定制
Can be customized

傳感器防護等級
Sensor protection rating
IP67

工作溫度
Working temperature
-10℃......+60℃

存儲溫度
Storage temperature range
-30℃......+80℃

外殼
Shell
金屬
Metal

磁柵控制器優(yōu)點:

具備磁柵測量儀的一切優(yōu)點。直接測量控制,無機械轉換誤差。驅動控制大功率普通電機(交流或直流電機)。控制系統性價比高。

Magnetic grid controller advantages：
With all advantages of magnetic measuring instrument. Direct measurement and control, no mechanical conversion errors. Drive control power General Motors(AC or DC motors). Control system for high cost performance.
