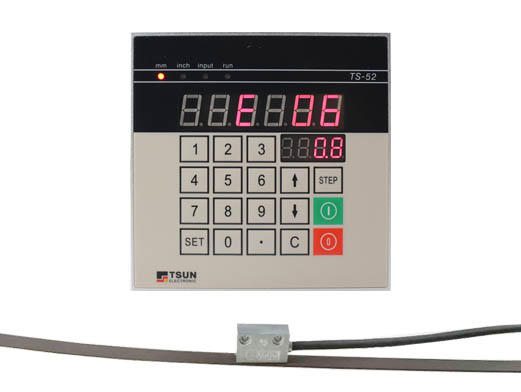

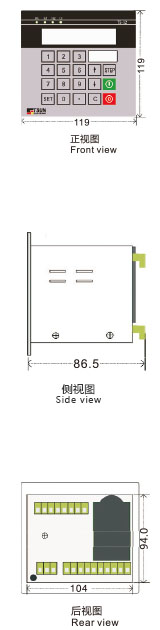

磁柵控制器 TS-52

THE MAGNETIC MAGNETIC GRID CONTROLLER

準絕對式測量,電池+外部電源供電,磁性位移傳感器+功率繼電器輸出的一體化設計

Absolute type measuring, battery external power supply, Magnetic displacement sensor + power relay output integration design

6+4位高亮數碼管顯示

6+4- highlight digital tube display

多組點動值存儲

Multiple sets of values are stored

當前點動值實時顯示

Current point value display

公制/英制可切換

Metric/inch swappable

手動/單動運行模式

Manual /single acting operation mode

10組單動數據存儲

10 single action data storage

自適應運動慣量

Adaptive motion inertia

自修正絲杠間隙誤差

Since the fixed screw clearance error

高可靠性繼電器輸岀(包括換向,高低速,定位完成等輸出

High reliable relay output(including directional, high speed,positioning to complete such as output)

使用磁性位移傳感器

Using magnetic displacement sensor

市電+后備電池供電

Backup battery +Backup battery power

電池供電,即使外部電源斷開后,設備有位移,Ts52也能實時跟蹤準確測

Battery power, even if the external power supply is disconnected, device has a displacement, Ts52 also can be tracked in real time and accurate measurement

特性
features
技術參數
Technical parameters
備注
Notes

系統精度
System accuracy
±(0.03+0.01*L)mm
L單位為:米
Unit: m

重復精度
Repeat accuracy
0.01mm

測控范圍
Range of measurement and control
-19999.9mm~99999.9mm
與分辨率設定有關
Associated with the DPI setting

顯示分辨率
Display resolution
0.01mm/0.05mm/0.1mm
可設定
Can be set to

電源電壓
Power supply voltage
AC220V/AC110V

后備電池
Backup battery
1節2號 1.5v(LR14)
1 2nd 1.5v(LR14)
壽命約2.5年
Life is about 2.5 years

整機功耗
Machine power consumption
小于4W

測控速度
Control speed
MAX2.5m/S

適用磁尺
Applied magnetic ruler
5mm+5mm

讀頭與磁帶間距
Read head and the tape space
0.5mm------2.0mm

輸出形式
Output form
繼電器常開
Relay normally open

輸出觸點功率
Contact power output
AC220V/5A DC24V/10A

傳感器線長度
Sensor cable length
1m------15m
可定制
Can be customized

傳感器防護等級
Sensor protection rating
IP67

工作溫度
Working temperature
-10℃......+60℃

存儲溫度
Storage temperature range
-30℃......+80℃

外殼
Shell
金屬
Metal

磁柵控制器優點

具備磁柵測量儀的一切優點。直接測量控制,無機械轉換誤差。驅動控制大功率普通電機(交流或直流電機)。控制系統性價比高。

Magnetic grid controller advantages
With all advantages of magnetic measuring instrument. Direct measurement and control, no mechanical conversion errors. Drive control power General Motors(AC or DC motors) Control system for high cost performance.
