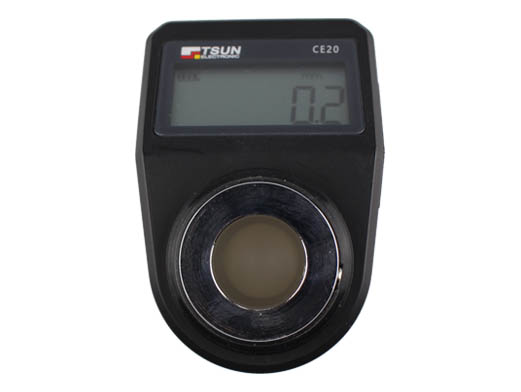

數字位置指示器 CE20

DIGITAL POSITION INDICATOR
顯示分辨率:0.01/0.1/1mm
Display resolution: 0.01/0.1/1 mm
重復測量精度:Max10um
Repeated measurement accuracy: Max 10 um
多功能菜單,參數可設定
Multi-function menus, parameters can be set
高對比度,LCD顯示
High contrast LCD display
長度/角度測量模式
Length/Angle measurement model
絕對/相對測量模式
Absolute/relative measurement model
與旋轉軸連接方式簡單
With the axis of rotation connection mode is simple
防護級別高
High level of protection
更換電池便捷
Replace the battery is convenient
外觀小巧,安裝便捷
Compact, installation is convenient
產品應用領域說明
  • 特性
    features
  • 技術參數
    Technical parameters
  • 備注
    Notes
  • 測量參數
    System accuracy

  • 系統精度
    System accuracy
  • 土0.03mm

  • 測量/顯示范圍
    Measurement/display range
  • -19999~99999.9

  • 顯示分辨率
    Display resolution
  • 0.01/0.1/1
  • 單位為:毫米
    Unit:mm
  • 測量計算方向
    Measuring and calculating directions
  • 左轉/右轉計數值增加
    Turn left/right count increase
  • 可設定
    Can be set to
  • 每圈測量值
    Each lap measuring value
  • 0.1~300.0
  • 可設定
    Can be set to
  • 顯示方向翻轉
    Flip display orientation
  • 正常顯示/反轉顯示
    Normali/reverse display
  • 可設定
    Can be set to
  • 轉速
    Speed
  • 最大600轉每分(100%有效)
    Max 600 rpm (100% only)

  • 結構參數
    Structural parameter

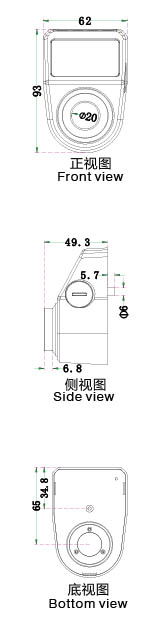

  • 外觀尺寸
    Outward appearance size
  • 見右圖
    See right
  • 單位為:毫米
    Unit:mm
  • 外殼材料/顏色
    Husing material/color
  • 塑料/紅色/黑色
    Plastic/red/black

  • 空心軸徑
    Hollow shaft diameter
  • D=20mm滑動軸承 黑色鋼
    D=20mm Plain bearings, black steels
  • 軸徑可定制
    Shaft diameter can be customized
  • 其他參數
    Other parameters


  • 電源供電
    Power supply
  • 1節 ER14505
    Section 1 ER 14505

  • 重量
    Weight
  • 約0.5kg
    About 0.5kg

  • 工作溫度
    Wrking temperature
  • -10℃......+60℃

  • 存儲溫度
    Storage temperature range
  • -30°c~+80°c

  • 防護等級
    Protection rating
  • IP54
  • DIN IEC68-2-6
  • 抗震性能
    Seismic performance
  • 10g(5~100H2Z)
  • DIN IEC68-2-27
  • 抗沖擊性
    Impact resistance
  • 30g/15ms

  • 電磁兼容
    Electromagnetic compatibility
  • 符合GB8702-88標
    Meet the GB8702-88

按裝要點:

請注意齒輪+齒條的間隙,過大的間隙會影響測量精度,過小的間隙會影響傳動的靈活性。調試要點(必要的2步)
A、當前設備運行方向和計數顯示方向是否一至,如果不一至請進入菜單設定測量計算的方向
B、請設定在當前位置希望顯示的數值

Install Essentials:
Please note that gear +rack space, excessive clearance will affect the measurement accuracy of space that is too small will affect the flexibility of transmission. Debugging points(need 2 step)
Direction and the count shows a, the current device orientation to, if different direction b to enter the menu setting is measured, please set the value you want to display in the current location.
