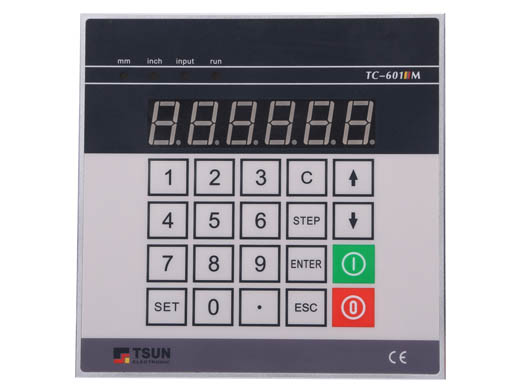

電機行程控制器 TC-601M

MOTOR CONTROLLER
顯示分辨率:0.01/0.1/1mm
Display resolution: 0.01/0.1/1 mm
重復測控精度:±1LSB
Repeated measurement accuracy: 1 LS
多功能菜單,可自由設定參數
Multifunctional menu, are free to set parameters
6位高亮數碼管顯示
Six highlight digital tube display
公制/英制可切換
Metric/inch swappable
點動/自動運行模式
Point to move/automatic operation mod
自適應運動慣性
Adaptive motion inertia
自修正絲杠間隙誤差
Since the fixed screw clearance error
高可靠性繼電器輸出
High reliability relay output
傳感器連接簡捷
Simplicity of sensor connection
掉電自動記憶當前值
Electric current value automatic memory
出廠備份及恢復功能
The factory backup and restore function
產品應用領域說明
  • 特性
    features
  • 技術參數
    Technical parameters
  • 備注
    Notes
  • 測量參數
    Measurement parameters

  • 系統精度
    System accuracy
  • 與所采用的傳感器系統有關
    Associated with the sensor system

  • 測量/顯示范圍
    Measurement/display range
  • 99999~999999

  • 顯示分辨率
    Display resolution
  • 0.01/0.1/1
  • 單位為:亳米
    Unit: mm
  • 脈沖輸入速率
    Input pulse rate
  • 最大30KHZ/S(100%有效)
    Maximum 30 KHZ/S(100% only)

  • 結構參數
    Structural parameter
  • 菜單內設置
    Menu settings

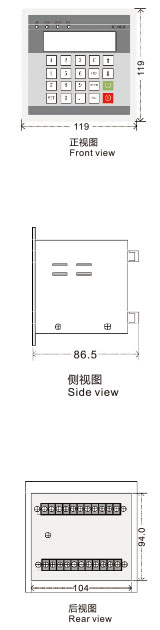

  • 外觀尺寸
    Housing material/color
  • 見右圖
    See right
  • 單位為:亳米
    Unit: mm
  • 外殼材料/顏色
    Display
  • 金屬/淺灰
    Metal/light gray

  • 安裝配件
    Mounting accessories
  • 金屬頂銷
    Metal/light gray

  • 重量
    Weight
  • 約1.5kg
    About 1.5kg

  • 其他參數
    Other parameters
  • MS 500/5mm

  • 電源供電
    Power supply
  • AC110VEZAC220V 50/60HZ
    AC110V ORAC220V50/60HZ

  • 輸出觸點耐壓/功率
    Output contact voltage/power
  • 交流240V/5A
    AC 240V/5A

  • 工作溫度
    Wking temperature
  • -10℃~+60℃

  • 儲存溫度
    Storage temperature range
  • -30℃~+80℃

  • 防護等級
    Potection rating
  • IP54

  • 抗震性能
    Seismic performance
  • 10g(5-100HZ)
  • DIN IEC68-2-6
  • 抗沖擊性
    Impact resistance
  • 30g/15ms
  • DIN IEC68-2-6

安裝要點:

供電電源為交流110V和交流220V兩種接法,注意不同的接線端子。繼電器輸出觸點只能連接在交流220V及以下的系統,過高的電壓可能會損壞該觸點。接近感應開關和碼盤的配合要合適,距離過遠可能會造成丟碼。傳感器的信號線盡量遠離動力線。
調試要點(必要的3步)
A、請設定對應脈沖的系數
B、請檢查電機運行方向和顯示方向是否一致如果不一致請交換傳感器的A、B信號輸入線
C、請設定在當前位置希望顯示的數值


Installation important:
Power source AC 110V AC 220V two-connection, note the different terminals. Relay output contacts can only be connected in the system up to the AC 220V, excessive voltage can damage the contacts. Proximity switch and codingappropriate co-ordination, is too far may result in losing yards. As far as possible from power cables from the signal of the sensor.
Debugging elements(essential 3 step)
A、 The coefficient a, set the corresponding pulse.
B、 Check that the motor direction and the direction is consistent; if not, swap sensors a, b signal input line.
C、 Set the values you want to display in the current location.
